SPECIFICATIONS
• Dual cameras both up to full HD 1080P 30fps
• Both cameras extending up to 6 meters
• Optional sticker camera / water-proof camera
• Sony ExmorR StarVlS low lux image sensor
• 2.7" TFT screen for live view and playback
• 150Mbps IEEE802.11 N(B/G) WiFi host
• 2.4G RF wireless remole controller
• Recording storage mlcroSD card up to 256GB
• External GPS with indicator and speaker
• Optional Speed Cam module
• G-sensor vibration detect, Motion Detection
• Voice reminder for easy operation
• Built-in super capacitor backup battery
• Optional1000mAh rechargeable Li-Po battery
• Support OBD data monitoring and recording
• AV-out to monitor for live view and playback
• Micro-HDMI output to high resolution TV
• Optional screw mounting, clip mounting, magnet mounting, sticker mounting
• Built-In auto temperature protection
• Built-in over-voltage input protection
• Support vehicle battery drain protection
• Exclusive PIP playback player with GPS map
• Support auto switching Parking Guard
• Mini camera, hidden installation
PACKAGING CONTENTS (standard version)
• K2S recorder body X1
• Remote camera unit X2
• Remote GPS receiver X1
• 2meters extending cable X2
• 4meters extending cable X1
• 6meters extending cable X1
• 1.5meters data&powercable X1
• Remote controller X1
• External device adapter X1
• Extending cable holder X1
• Cable holder screw 4#-40 X3
• Recorder clip holder X1
• Clip holder clamp X1
• Clip holder screw 4#-40 X5
• Extending cable clamp X12
• 3M pads for mounting X8
• Tiny magnet mount X1
• User manual X1
• Cleaning kit X1
PC SYSTEM REQUIREMENTS
• Windows XP or later operating system, MAC 10.1 or later
• Intel Pentium 4 2.8GHz CPU or above (recommended 3GHz)
• At leaSt 2GB RAM or above (recommended 4GB)
• Internet connection (for GPS log playback)

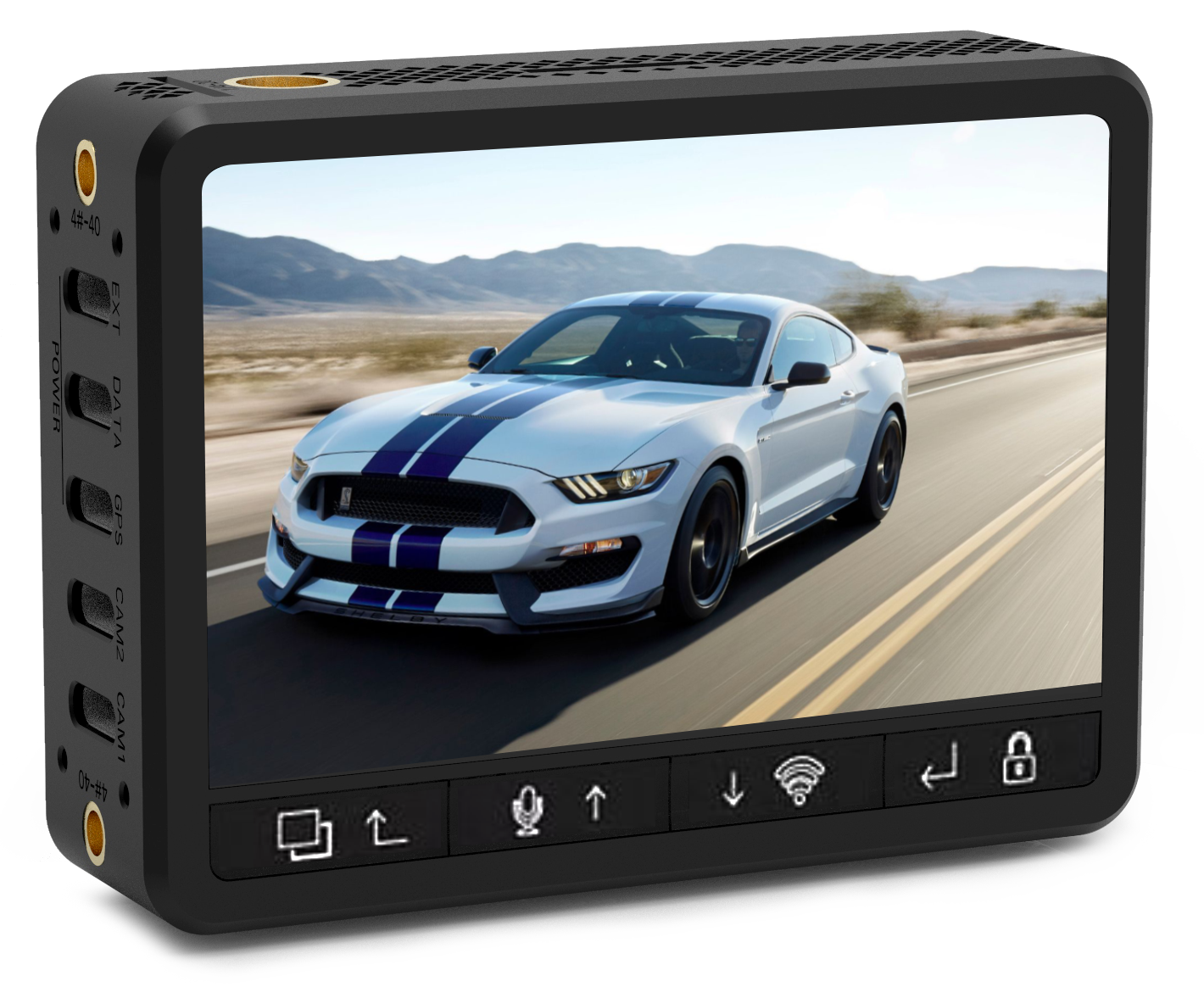

ROADCAM VISION Front Back Sony Mini Cams 2 CH DVR + 32GB SD CARD
Model: Roadcam K2S
Matrix: 2.19Mpx Sony IMX323 in each camera
Optics: F / 2.0, 6G
Platform: Novatek NT96663
Viewing angle: 135 ° diagonal
Shooting mode: 2 channels FullHD @ 30fps
Screen: yes, 2.7 inches TFT 320 × 240
Video output: yes, microHDMI
ADAS support: no
Feature: built-in WiFi 2.4Ghz, OBDII, BlueTooth button
Feature: overheat protection, power controller, speedcams (optional)
Feature: potentially connecting a physical remote radar Detector
Codec: H.264, .MP4 container Loop
Recording mode: yes
Parking mode: yes, many options
GPS module: external (included)
Speaker: yes
Microphone: yes, GPS
Shock sensor (G-sensor): yes
Voice prompts: yes
LED indication: on GPS and on the unit
Data recording: dates and time, speed, owner’s stamp, coordinates on video
Support for memory cards: MicroSD up to 256GB
Battery: supercapacitor and lithium 1000mah 3.7v (optional)
Power supply: 12-24v input, output 5v usb type-with current over 1.5A
Temperature modes: operation from -20 to + 70°
C Accessories: GPS module (included), Bluetooth button (included), OBDII (included), hardwire kit, external cameras and IR camera
Unit dimensions: 87x57x22.5mm, weight 89gr
Remote camera dimensions: 25x41x36.5, weight 33gr
OS support: PC win / mac, Android / iOS
